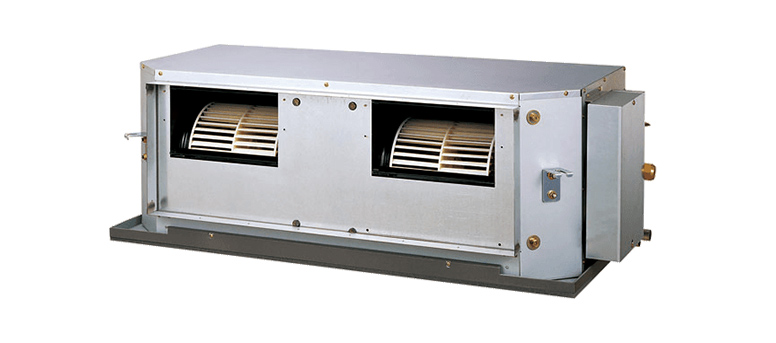

High Static Pressure Duct range
18.00kW
20.00kW
ARXC060GTEH
| Product Category | Airstage VRF |
| Product Range | High Static Pressure Duct range |
| Capacity | 18.00kW Cooling 20.00kW Heating |
| Model Number | ARXC060GTEH |
Technical Specifications
| Operation Type | Reverse Cycle |
| Power Source V/Ph/Hz | 230 / 1 / 50 |
| Capacity Class kW | 18 |
| Running Current amps (Cooling / Heating) | 3.15 / 3.15 |
| Indoor Sound Pressure Cooling dBA (High / Quiet) | 49 / 42 |
| Indoor Sound Pressure Heating dBA (High / Quiet) | 49 / 42 |
| Static Pressure Range PA (Min to Max) | 100 to 250 |
| Air Circulation (Indoor - High Fan) Cooling l/sec | 972 |
| Air Circulation (Indoor - High Fan) Heating l/sec | 972 |
| Indoor Unit Dimensions mm (Height x Width x Depth) | 400 x 1050 x 500 |
| Indoor Unit Weight kg | 46.00 |
| Piping Connects mm Ø (Liquid / Gas) | 9.52 / 15.88 |
| Refrigerant Type | R410A |
| Return Air Connection (H x W) | 324 x 862 |
| Supply Air Connection (H x W) | 295 x 851 |
| UART Communication | Yes |
| UART Communication Port | CN65 |
Show all specifications
Collapse all specifications
Download PDF
This product is part of the Residential and Commercial High Static Pressure Duct range
