Ducted Systems category
20.00kW
22.40kW

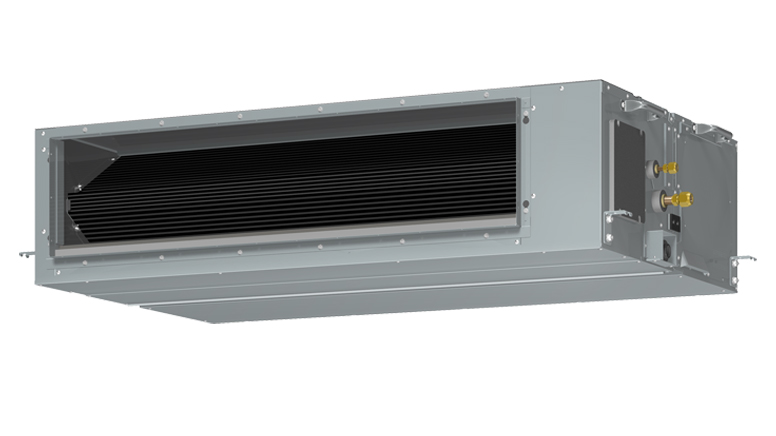

ARTH72KHTA-3PH
| Product Category | Ducted Systems |
| Capacity | 20.00kW Cooling 22.40kW Heating |
| Model Number | ARTH72KHTA-3PH |
Technical Specifications

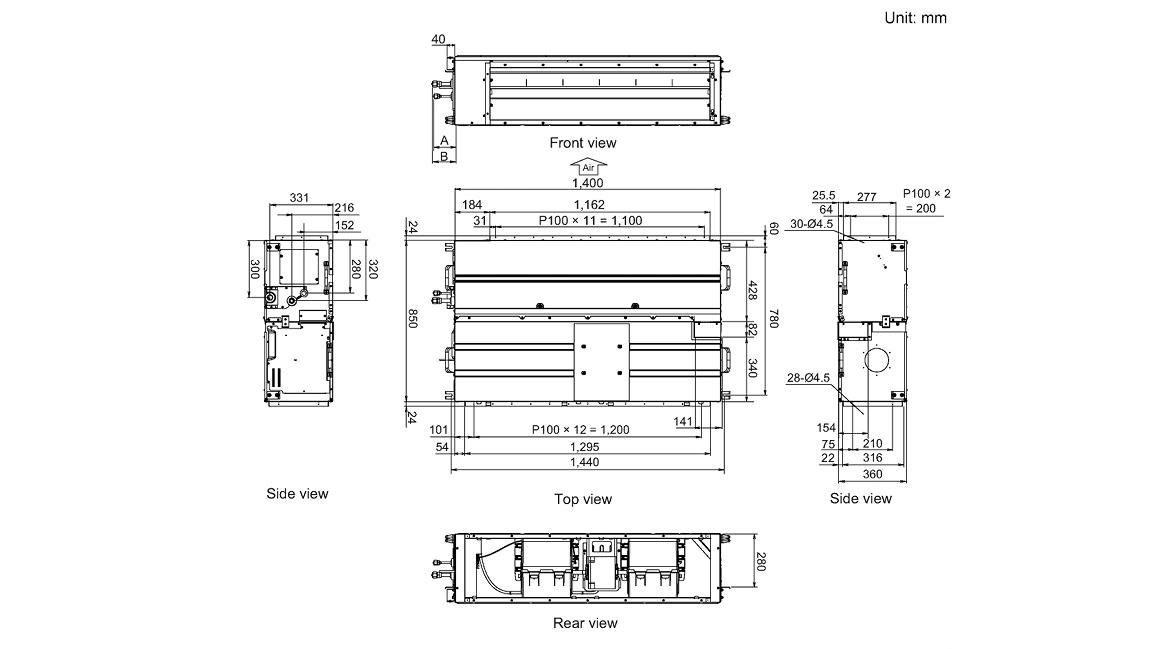

| Indoor Unit Dimensions mm (Height x Width x Depth) | 360 x 1400 x 850 |
| Indoor Unit Weight kg | 69.00 |

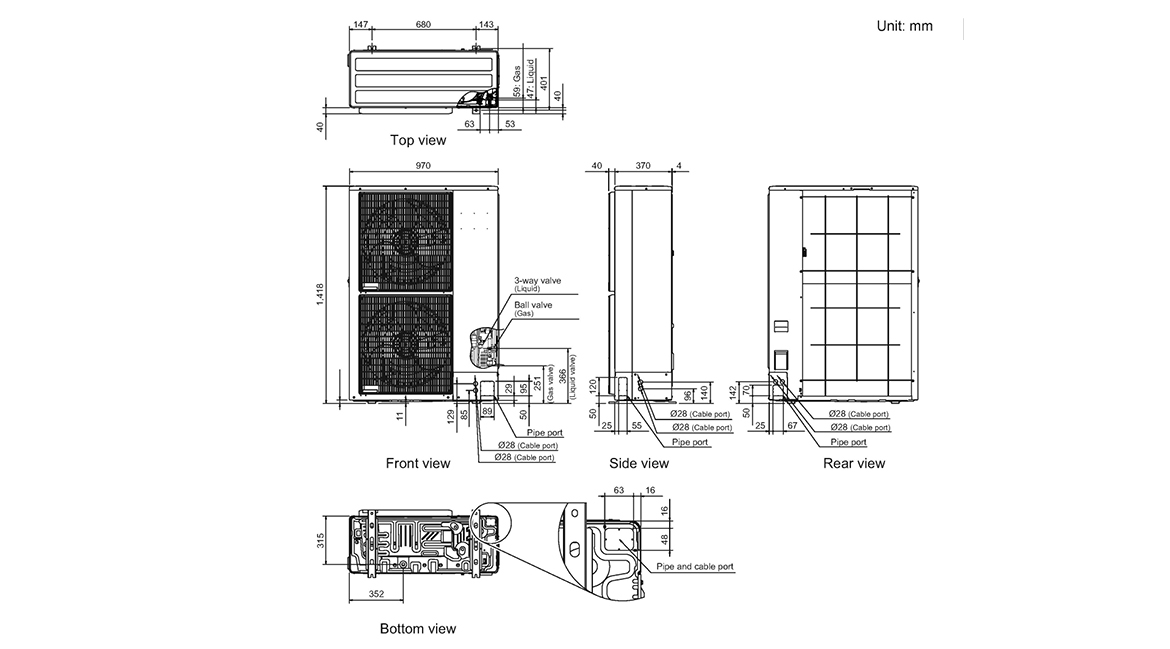

| Outdoor Unit Dimensions mm (Height x Width x Depth) | 1418 x 970 x 370 |
| Outdoor Unit Weight kg | 107.00 |
| Refrigerant Type | R32 |
| Refrigerant Amount g | 4,500 |
