Ducted Systems category
22.40kW
25.00kW
ARTH90KHTA-3PH
| Product Category | Ducted Systems |
| Capacity | 22.40kW Cooling 25.00kW Heating |
| Model Number | ARTH90KHTA-3PH |
Technical Specifications

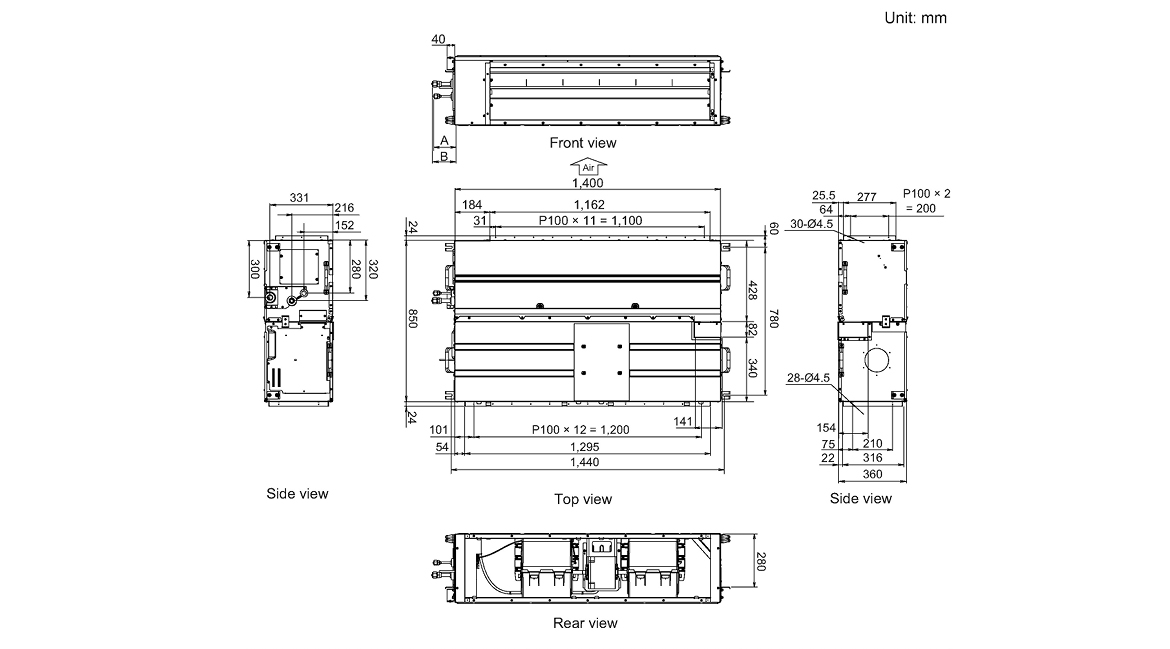

| Indoor Unit Dimensions mm (Height x Width x Depth) | 360 x 1400 x 850 |
| Indoor Unit Weight kg | 79.00 |

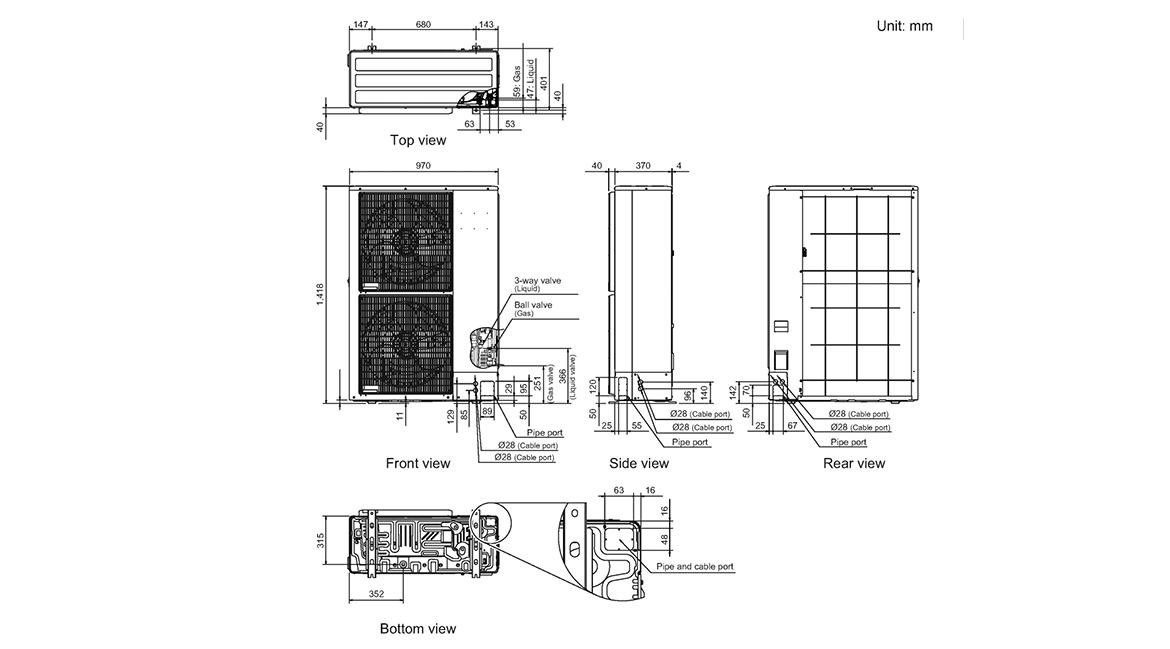

| Outdoor Unit Dimensions mm (Height x Width x Depth) | 1418 x 970 x 370 |
| Outdoor Unit Weight kg | 107.00 |
| Refrigerant Type | R32 |
| Refrigerant Amount g | 4,500 |
