|Product Range||Compact Cassette range|
|Capacity||5.00kW Cooling 6.00kW Heating|
|Operation Type||Reverse Cycle|
|Power Source V/Ph/Hz||230 / 1 / 50|
|Capacity Class kW||5|
|Cooling Capacity kW (Rated (Min - Max))||5.00 (0.9 - 5.9)|
|Heating Capacity kW (Rated (Min - Max))||6.00 (0.9 - 7.1)|
|Input Power Cooling kW (Rated (Max))||1.45 (2.39)|
|Input Power Heating kW (Rated (Max))||1.71 (2.78)|
|EER Cooling kW/kW||3.45|
|COP Heating kW/kW||3.51|
|Star Rating Cooling (0-10) (Hot / Average / Cold)||3 / 2.5 / 2.5|
|Star Rating Heating (0-10) (Hot / Average / Cold)||3 / 2 / 1.5|
|Total Cooling Seasonal Performance Factor Residential kW (Hot / Average / Cold)||4.666 / 4.325 / 4.474|
|Heating Seasonal Performance Factor Residential kW (Hot / Average / Cold)||4.574 / 3.954 / 3.376|
|Total Cooling Seasonal Performance Factor Commercial kW (Hot / Average / Cold)||5.002 / 5.085 / 5.426|
|Heating Seasonal Performance Factor Commercial kW (Hot / Average / Cold)||4.586 / 4.21 / 3.709|
|Running Current amps (Cooling / Heating)||6.2 / 7.3|
|Moisture Removal l/hr||2|
|Indoor Sound Pressure Cooling dBA (High / Quiet)||38 / 26|
|Indoor Sound Pressure Heating dBA (High / Quiet)||43 / 30|
|Outdoor Sound Pressure dBA (Cooling / Heating)||48 / 49|
|Outdoor Sound Power dBA||62|
|Air Circulation (Indoor - High Fan) Cooling l/sec||189|
|Air Circulation (Indoor - High Fan) Heating l/sec||189|
|Indoor Unit Dimensions mm (Height x Width x Depth)||245 x 570 x 570|
|Indoor Unit Weight kg||15.00|

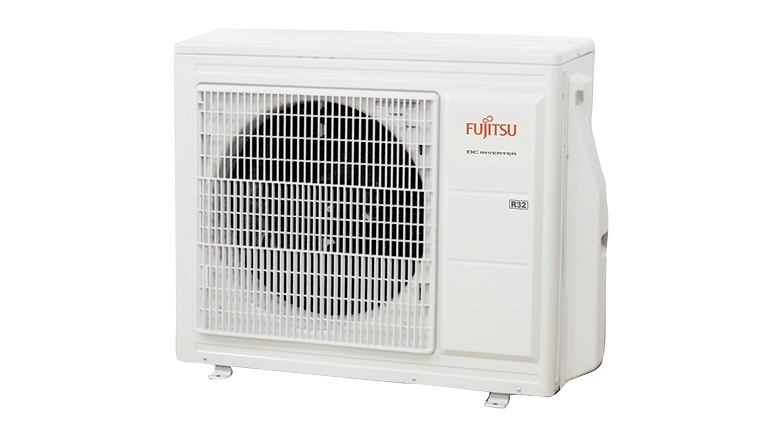

|Outdoor Unit Dimensions mm (Height x Width x Depth)||632 x 799 x 290|
|Outdoor Unit Weight kg||36.00|
|Grill Dimensions mm (Height x Width x Depth)||49 x 620 x 620|
|Grill Weight kg||2.30|
|Piping Connects mm Ø (Liquid / Gas)||6.35 / 12.7|
|Pipe Length m (Max (Precharged))||30 (20)|
|Max Height Difference m||20|
|Operation Range Cooling °CDB (Min to Max)||-10 to 46|
|Operation Range Heating °CDB (Min to Max)||-15 to 24|
|Refrigerant Amount g||1,020|
Wireless Remote Controller
Easy installation and compact design. These compact cassette air conditioner models are extremely discreet with a non-intrusive grille design that sits level with the ceiling. Air can be distributed throughout the space in up to four directions.
With All DC, electricity loss is decreased and power consumption reduced.
Should there be a temporary loss of power, the unit will automatically restart itself in the same operating mode, once the power is restored.
The unit automatically switches between operating modes based on the temperature setting and room temperature.
The micro-processor automatically adjusts the air flow to follow changes in room temperature.
The position of the louvres is set automatically to match the operating mode. It is also possible to adjust the louvres using the remote control.
Corrosion-resistance of the heat exchanger in coastal areas has been improved by blue fin treatment of the outdoor unit heat exchanger.
Limits the maximum operation current, and performs operation with the power consumption suppressed.
Select appropriate intervals for displaying the filter sign on the indoor unit according to the estimated amount of dust in the air of the room.
i-PAM inverter technology enables high output and high efficiency performance.
ON-OFF timer can be set to operate once every 24 hours.
This timer allows selection of one of four options. ON, OFF, ON ––> OFF, or OFF ––> ON.
The indoor unit’s intake grille can be removed for easy cleaning and maintenance.
The micro-processor gradually changes the room temperature, allowing you to sleep comfortably at night.
The indoor units fan can operate at a low speed to produce quieter operation.
The up/down louvre automatically swings up and down.
v-PAM inverter technology increases the maximum output of the compressor significantly and enables high power and high efficiency.
Dust that accumulates on the air conditioner can be easily cleaned with a damp cloth.
The micro-processor automatically adjusts air flow to follow changes in room temperature
The room temperature can be set to go no lower than 10°C, thus ensuring that the room does not get too cold when not occupied.
