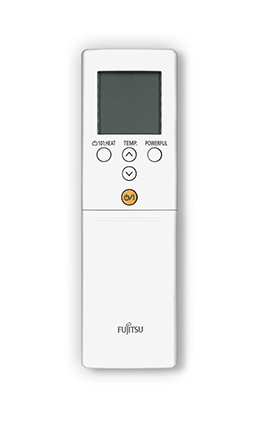

Take control. Controller options.
This range is compatible with the following controller options.
| Type | Multi System |
| Available in | Reverse Cycle - 2.5kW, 3.5kW, 4.0kW |
| Refrigerant | R32 |
Key features
7580f330-79d2-4c25-8dfe-318860621b79.jpg?sfvrsn=f340b70f_1)
-
Economy ModeThe economy operation will save energy in heating, cooling and dry mode and is set by pressing the button on the remote control.
-
Low Noise Mode
The compressor speed and the outdoor unit fan speed are limited to reduce the operational noise.
-
10ºC Heat Operation
The room temperature can be set to go no lower than 10°C, ensuring that the room does not get too cold when not occupied. Perfect for cold climates.
Find the perfect model. Explore the Floor Console range.
Technical Specifications
| Attribute | AGTG09KVCA 2.50kW(C) 2.50kW(H) View model | AGTG12KVCA 3.50kW(C) 3.50kW(H) View model | AGTG14KVCA 4.00kW(C) 4.00kW(H) View model |
|---|---|---|---|
|
Operation Type
|
Reverse Cycle | Reverse Cycle | Reverse Cycle |
|
Power Source
V/Ph/Hz
|
230 / 1 / 50 | 230 / 1 / 50 | 230 / 1 / 50 |
|
Capacity Class
kW
|
2.5 | 3.5 | 4 |
|
Running Current
amps (Cooling / Heating)
|
0.15 / 0.15 | 0.18 / 0.18 | 0.2 / 0.2 |
|
Indoor Sound Pressure Cooling
dBA (High / Quiet)
|
39 / 22 | 42 / 22 | 44 / 22 |
|
Indoor Sound Pressure Heating
dBA (High / Quiet)
|
39 / 22 | 42 / 22 | 44 / 22 |
|
Air Circulation (Indoor - High Fan) Cooling
l/sec
|
147 | 167 | 181 |
|
Air Circulation (Indoor - High Fan) Heating
l/sec
|
147 | 167 | 181 |
|
Indoor Unit Dimensions
mm (Height x Width x Depth)
|
600 x 740 x 200 | 600 x 740 x 200 | 600 x 740 x 200 |
|
Indoor Unit Weight
kg
|
14.00 | 14.00 | 14.00 |
|
Piping Connects
mm Ø (Liquid / Gas)
|
6.35 / 9.52 | 6.35 / 9.52 | 6.35 / 9.52 |
|
Operation Range Cooling
°CDB (Min to Max)
|
18 to 32 | 18 to 32 | 18 to 32 |
|
Operation Range Heating
°CDB (Min to Max)
|
16 to 30 | 16 to 30 | 16 to 30 |
|
Refrigerant Type
|
R32 | R32 | R32 |
Show all specifications
Collapse all specifications
